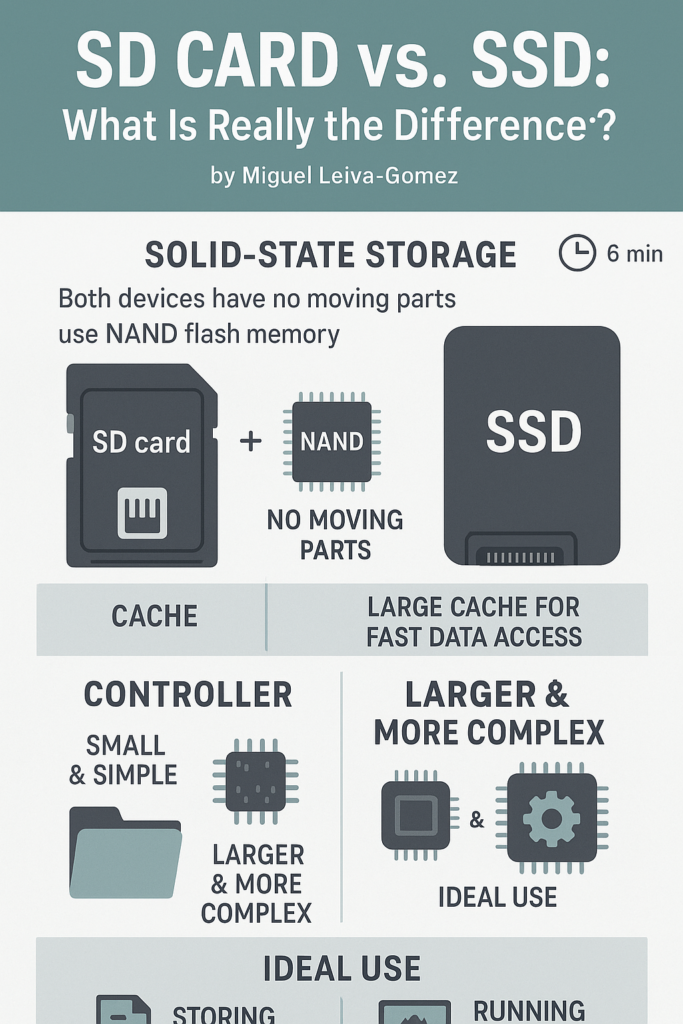

Though both SD cards and SSDs (Solid State Drives) use solid-state storage with no moving parts, they serve very different purposes. At a glance, it may seem that a high-capacity SD card could work like a small SSD, but the technology, use cases, and performance vary greatly.
1. NAND Flash Technology
Both storage types use NAND flash memory, where performance heavily depends on the type of cells used and the efficiency of the controller.
Types of NAND cells:
SLC (Single-Level Cell) stores one bit per cell. It’s fast, highly durable, and expensive. Mostly used in high-end SSDs or for caching.
MLC (Multi-Level Cell) stores two bits per cell. It’s moderately durable and more affordable than SLC.
TLC (Triple-Level Cell) stores three bits per cell and is the most common in consumer SSDs, offering a good balance of cost and performance for home use.
QLC (Quad-Level Cell) stores four bits per cell and is used in high-capacity drives. It’s cheaper but has lower endurance, suitable for archival storage rather than frequent writing.
2. SD Express: Bridging the Gap?
SD Express cards integrate NVMe technology to achieve speeds comparable to SSDs. However, they still can’t fully replace SSDs because of limitations in space for large caches and heat dissipation. They also struggle with non-sequential read/write speeds, which are critical for running operating systems or multitasking.
3. Hardware and Design Limitations
SD cards have compact designs with limited processing capability. Their small controllers and lack of infrastructure make them ideal for storing media and files but not for complex tasks.
SSDs, on the other hand, have space to accommodate advanced controllers, caches, and heat management. They are designed for frequent read/write operations, such as running software, booting operating systems, and handling multitasking efficiently.
4. Why SSDs Are Better for Performance
SSDs use techniques like wear leveling to distribute data evenly, preventing specific memory blocks from wearing out too quickly. They come with dedicated cache chips that allow for smoother performance during heavy use. Their larger form factor also enables better heat dissipation, allowing for more powerful and efficient controllers.
Conclusion
SD cards are great for portable, low-power storage like photos and video playback.
SSDs are built for speed, endurance, and managing heavier workloads like gaming, content creation, and general computing.
Even though SD Express cards are catching up in raw speed, SSDs remain the better option for performance-intensive tasks.
